ESP32 Wi‑Fi Packet Sniffer: Promiscuous Mode & Automated OUI Lookup

The ESP32 is an inexpensive microcontroller with on-board Wi‑Fi and Bluetooth. This project uses promiscuous mode so the radio can pass raw 802.11 frames to your code, extracts source MAC addresses, and calls a small HTTP API to show vendor names (OUI lookup). That is useful for labs, inventory, and learning how Wi‑Fi looks on the air.

What this article covers: enabling promiscuous RX on ESP32, deduplicating MACs, batching API calls, and staying on the right side of ethics and law.

The idea in plain language

Normally a Wi‑Fi interface drops frames that are not addressed to it. Promiscuous mode turns that filter off (within chip limits) so a callback receives more of what is in the air. From each buffer you can read bytes that correspond to MAC addresses, build a unique list, and only then query an online database that maps the first bytes of a MAC (OUI) to a manufacturer.

The firmware alternates between “listen for a while” and “pause, resolve vendors, print, clear, repeat” so Serial stays readable and you do not hammer the API.

What you get at the end

• Layer 2 visibility without joining a network as the main goal (you still use STA mode here because the sketch uses the internet for lookups).
• Stable MAC list using hash sets so each address is processed once per cycle.
• Vendor labels from a JSON API (maclookup.app in the example).
• Predictable timing: sniff window → pause → lookups → resume.

What you need

• An ESP32 dev board.
• Arduino IDE with the ESP32 core installed.
• Libraries: built-in WiFi, HTTPClient, esp_wifi; add ArduinoJson from the Library Manager.

How the sketch is organized

1. Connect in WIFI_STA and wait for an IP (needed for HTTP in this design).
2. Call esp_wifi_set_promiscuous(true) and register esp_wifi_set_promiscuous_rx_cb.
3. In the callback, parse the buffer, format a MAC string, insert into a set if new, print a short line on Serial.
4. When a timer fires, turn promiscuous mode off, iterate MACs, GET the API, parse JSON, collect matches.
5. Print a summary, clear the sniff set, restart the timer, enable promiscuous mode again.

Firmware (Arduino sketch)

Set your Wi‑Fi credentials before uploading.

#include <Arduino.h>
#include <WiFi.h>
#include <HTTPClient.h>
#include <ArduinoJson.h>
#include <unordered_set>
#include <vector>
#include <string>
#include <esp_wifi.h>

const char* ssid = "YOUR_SSID";
const char* password = "YOUR_PASSWORD";
const char* macLookupURL = "https://api.maclookup.app/v2/macs/";

struct MacEntry {
    std::string mac;
    std::string data;
};

std::unordered_set<std::string> sniffedMacs;
std::unordered_set<std::string> lookedUpMacs;
std::vector<MacEntry> foundMacs;

unsigned long sniffingStartTime;
const unsigned long sniffingDuration = 60000;

std::string lookupMac(const std::string& mac) {
    HTTPClient http;
    http.begin(String(macLookupURL) + mac.c_str());
    int code = http.GET();
    if (code > 0) {
        String response = http.getString();
        http.end();
        return std::string(response.c_str());
    }
    http.end();
    return "";
}

void packetSniffer(void* buf, wifi_promiscuous_pkt_type_t type) {
    wifi_promiscuous_pkt_t* pkt = (wifi_promiscuous_pkt_t*)buf;
    uint8_t* macAddr = pkt->payload + 10;
    char macStr[18];
    snprintf(macStr, sizeof(macStr), "%02X:%02X:%02X:%02X:%02X:%02X",
             macAddr[0], macAddr[1], macAddr[2], macAddr[3], macAddr[4], macAddr[5]);
    std::string macAddress(macStr);
    if (sniffedMacs.find(macAddress) == sniffedMacs.end()) {
        sniffedMacs.insert(macAddress);
        Serial.printf("Intercepted MAC: %s\n", macAddress.c_str());
    }
}

void setup() {
    Serial.begin(115200);
    delay(1000);
    WiFi.begin(ssid, password);
    Serial.printf("\nConnecting to Wi-Fi: %s\n", ssid);
    while (WiFi.status() != WL_CONNECTED) {
        delay(1000);
        Serial.print(".");
    }
    Serial.println("\nWi-Fi connected.");
    WiFi.mode(WIFI_STA);
    esp_wifi_set_promiscuous(true);
    esp_wifi_set_promiscuous_rx_cb(&packetSniffer);
    sniffingStartTime = millis();
    Serial.println("Sniffing started...");
}

void loop() {
    if (millis() - sniffingStartTime >= sniffingDuration) {
        esp_wifi_set_promiscuous(false);
        Serial.println("\nSniffing window closed. API lookups...");

        for (const auto& mac : sniffedMacs) {
            if (lookedUpMacs.find(mac) == lookedUpMacs.end()) {
                Serial.printf("Querying OUI for: %s\n", mac.c_str());
                std::string response = lookupMac(mac);
                if (!response.empty()) {
                    StaticJsonDocument<512> doc;
                    DeserializationError err = deserializeJson(doc, response);
                    if (!err && doc["found"].as<bool>()) {
                        foundMacs.push_back({mac, response});
                        Serial.println("Vendor resolved.");
                    }
                }
                lookedUpMacs.insert(mac);
            }
        }

        Serial.println("\nResolved MAC inventory:");
        for (const auto& entry : foundMacs) {
            Serial.printf("MAC: %s | Data: %s\n", entry.mac.c_str(), entry.data.c_str());
        }

        sniffedMacs.clear();
        sniffingStartTime = millis();
        Serial.println("\nRestarting promiscuous mode...");
        esp_wifi_set_promiscuous(true);
    }
}

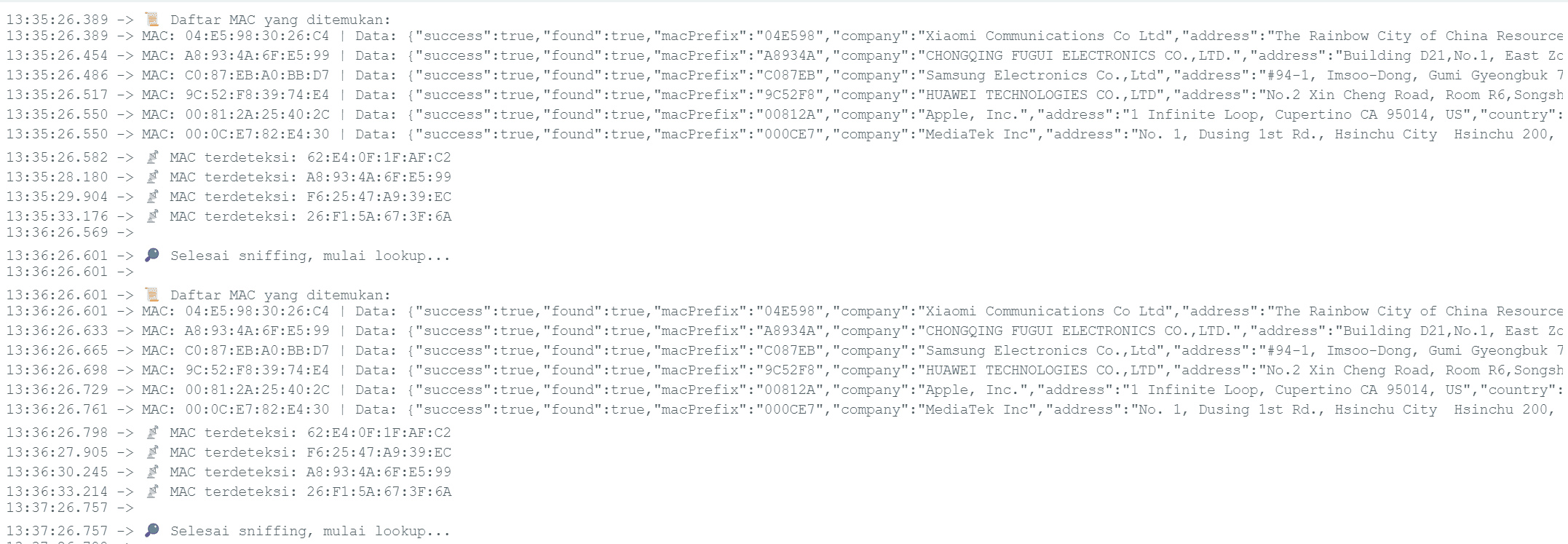

What it looks like on Serial

Below is example output; your MACs and JSON payloads will differ.

Klik untuk perbesar

Typical flow: connect → intercept MACs → query phase → printed inventory.

Next steps

If you outgrow the fixed offset, pair this with proper frame parsing or PCAP-style logging. You can also cache OUIs locally to reduce API use. Whatever you build, keep purpose and permission explicit. That is what makes the project genuinely useful instead of risky.
